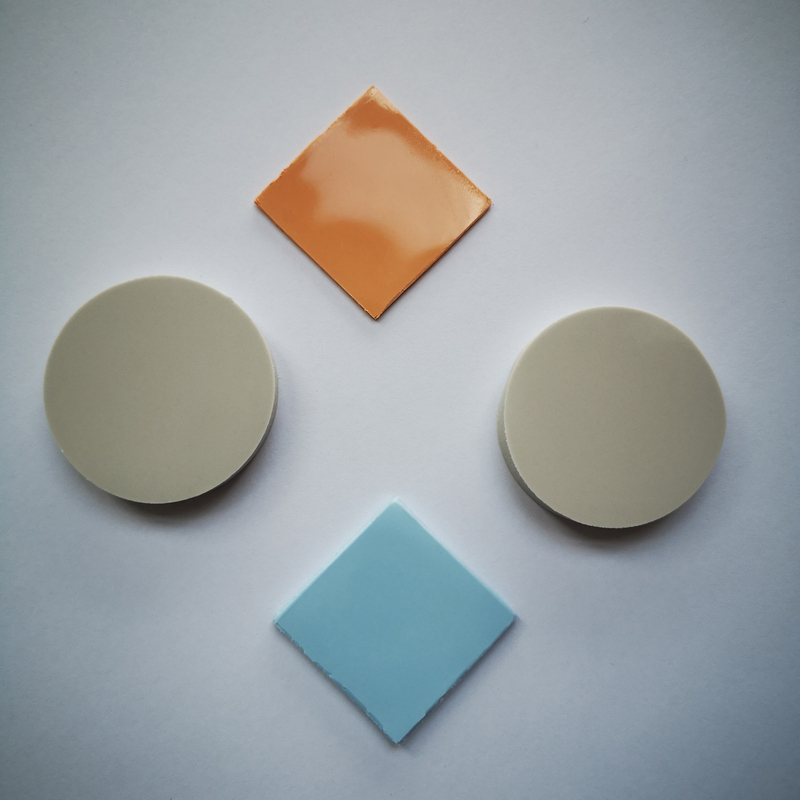

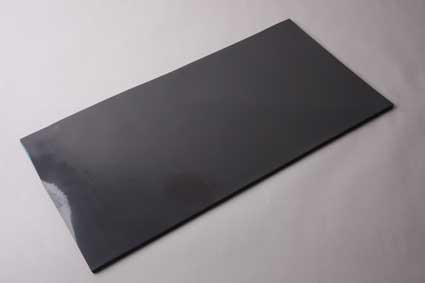

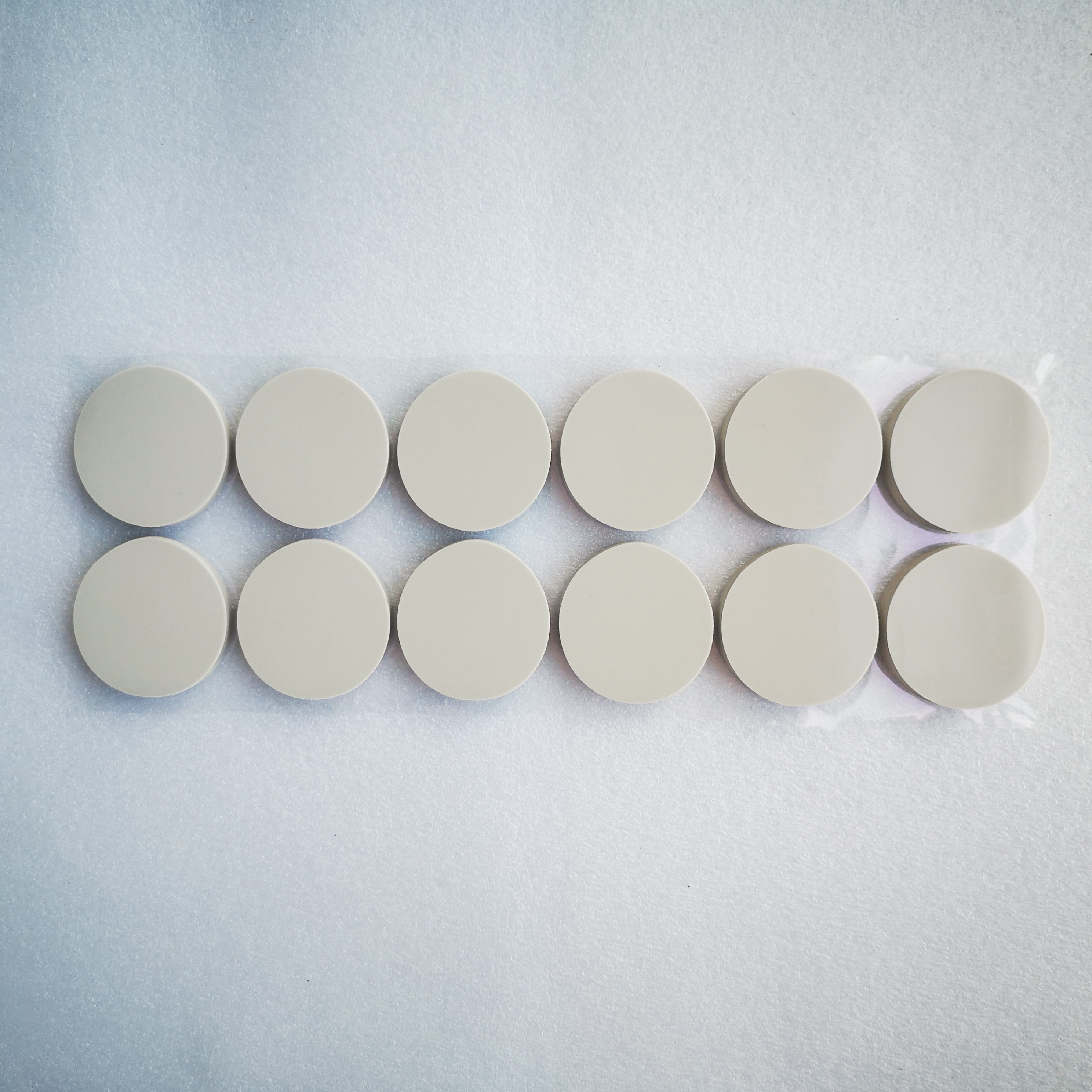

DSN SK80 thermal conductive pad is composed of silicone polymer and ceramic fillers. It is fabricated via special workman ship with high Cost/Performance value. It is double side self-tacky. Under low contact pressure, it can demonstrate excellent thermal transfer and electric isolation. Under-40~150℃, it performs stably and accords with UL94V0.
Product Description
Thermal conductivity: 8.0W/mK
Low thermal resistance at very lowpressures
High electrically isolative
Superior Temperature endurance
Conformable,lowhardness
Double side self-tacky
High electrically isolative
Superior Temperature endurance

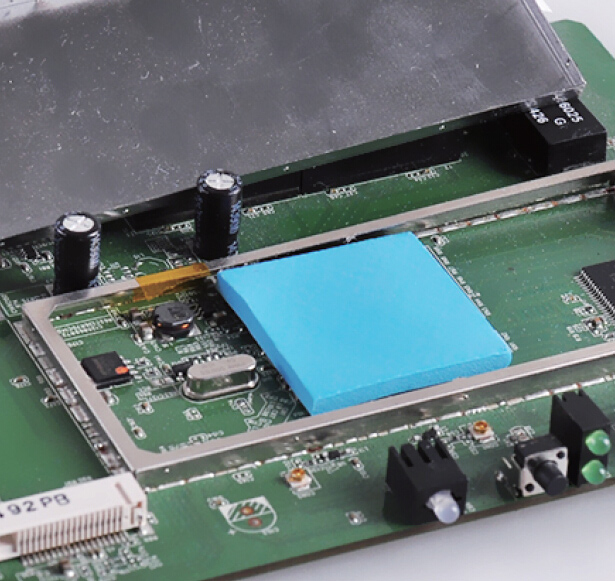

PC/NB
VGA
Network communication equipment
LCD back-lightmodule
H.D.D&DVD
DRAM modules
High thermal conductivity module
Automobile engine control unit
