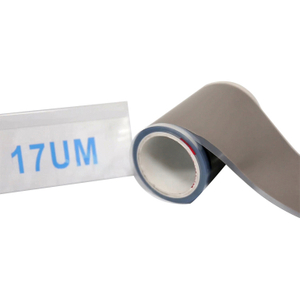

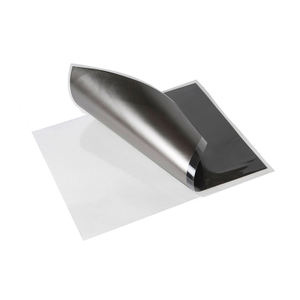

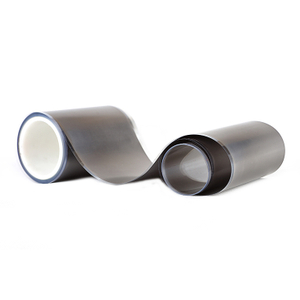

DSN5017HTD is an artificial graphite sheet with thickness of 17um and high thermal diffusivity.
The high performance 17um graphite sheet has thermal conductivity more than 1900W/m-K with small size, light weight, strong flexibility.
A wide range of die-cut shapes & components are manufactured to customers' design.
Customized heat dissipation solution can be offered.
Apply to radiator, communication & LED, Semiconductor manufacturing equipment, base station.
Flexible to be cut.
Withstand repeated bending.
Low thermal resistance
DSN5017HTD
DSN
| Quantity: | |
|---|---|
Product Description
Product Description
Part No. | Max. width(mm) | Thermal conductivity W/(m・K) | Structure | Withstand temperature (℃) | Remark |
DSN5017 HTD | 200 | ≥1900 | Graphite sheet 17um + PET release liner | （-40~400） | |
DSN5017 HTD-05DC | 200 | ≥1900 | Graphite sheet 17um + Double side adhesive 5um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-05DC05DC | 200 | ≥1900 | Single side adhesive 5um + Graphite sheet 17um + Double side adhesive 5um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-05DC05SB | 200 | ≥1900 | Single side adhesive 5um + Graphite sheet 17um + Double side adhesive 5um + PET release liner | （-40~400） | C:Clarity+B: Black |
DSN5017 HTD-05DC05SC | 200 | ≥1900 | Single side adhesive 5um + Graphite sheet 17um + Double side adhesive 5um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-10DC | 200 | ≥1900 | Graphite sheet 17um+ Double side adhesive 10um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-10DC10DC | 200 | ≥1900 | Single side adhesive 10um + Graphite sheet 17um + Double side adhesive 10um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-10DC10SC | 200 | ≥1900 | Single side adhesive 10um + Graphite sheet 17um + Double side adhesive 10um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-10DC10SB | 200 | ≥1900 | Single side adhesive 10um + Graphite sheet 17um + Double side adhesive 10um + PET release liner | （-40~400） | C:Clarity+B: Black |
DSN5017 HTD-05DC10SC | 200 | ≥1900 | Single side adhesive 10um + Graphite sheet 17um + Double side adhesive 5um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-10DC05SC | 200 | ≥1900 | Single side adhesive 5um + Graphite sheet 17um + Double side adhesive 10um + PET release liner | （-40~400） | C:Clarity |
DSN5017 HTD-05DC10SB | 200 | ≥1900 | Single side adhesive 10um + Graphite sheet 17um + Double side adhesive 5um + PET release liner | （-40~400） | C:Clarity+B: Black |
DSN5017 HTD-10DC05SB | 200 | ≥1900 | Single side adhesive 5um + Graphite sheet 17um + Double side adhesive 10um + PET release liner | （-40~400） | C:Clarity+B: Black |
