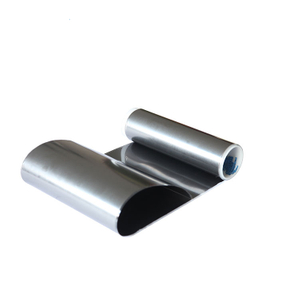

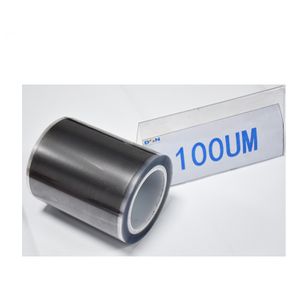

What Is Synthetic Graphite Sheet

Polyimide (PI) was carbonized under inert atmosphere and pressure and graphitized at 2800-3200℃ to produce synthertic graphite sheet (also called artifical graphite sheet). The manufactured product has a highly preferred orientation graphite layer along the film surface similar to the highly oriented pyrolytic graphite, and the crystallinity is high. This method has a simpler preparation process than the pyrolytic graphite preparation.

Dasen's synthetic graphite is made by heat treatment of polyimide (PI) films. Polyimide referred to as PI, with "gold film" "pyramid tip" polymer materials, the most promising engineering plastics in the 21st century reputation, PI film is the key material for the preparation of synthetic graphite, widely used in mobile phones, computers and other intelligent terminal products. The carbonization and graphitization method of PI film has more advantages in the preparation of highly crystalline and highly oriented graphite sheets with high thermal conductivity. The thermal conductive graphite materials prepared by PI film heat treatment method have high tensile strength, relatively complete structure, low crystal structure defects, high degree of carbon atom order, and thermal conductivity coefficient of 900-1950 W/mK.  In terms of thickness, this process route can produce thermal conductive graphite as thin as 0.012mm (12μm), which has a good performance in the light and thin heat dissipation design of mobile phones.
Technical Parameters
  • Item No. DSN5017 DSN5025 DSN5032 DSN5040 DSN5050 DSN5050 DSN5100
    Thickness (um) 17±3 25±3 32±4 40±4 50±5 70±7 100±10
    X-Y axis (w/m.k) 1600~1800 1500~1700 1400~1600 1300~1500 1100~1300 1100~1300 900~1100
    Z axis (w/m.k) 10~15 10~15 10~15 10~15 10~15 15~20 15~20
    Density (g/cm³) 2.0±0.1 2.0±0.10 1.9±0.1 1.8±0.1 1.7±0.1 1.7±0.1 1.4±0.1
    Heat capacity (J/g/K) 0.85±0.01
    Operation temperature (℃) -40 ~ 400
    Conductivity (s/m) 3.49 x107 2.46 x 107 1.49x107 1.38 x 107 -- 7.43 x 106 5.41 x 106
    Bending (angle180, R2) 5000 5000 5000 3000 2000 2000 2000
  • Item No. DSN5017HTD DSN5025HTD DSN5032HTD DSN5040HTD DSN5050HTD DSN5070HTD DSN5100HTD

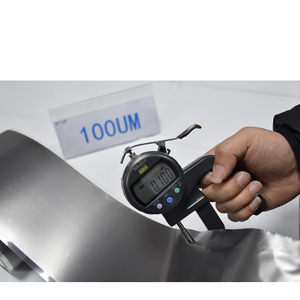

    Thickness (um) 17±3 25±3 32±4 40±4 50±5 70±7 100±10
    X-Y axis (w/m.k) ≥1900 ≥1800 ≥1700 ≥1700 ≥1600 ≥1500 ≥1300
    Z axis(w/m.k) 10~15 10~15 10~15 10~15 15~20 15~20 15~20
    Density (g/cm³) ≥2.05 ≥2.0 ≥2.0 ≥2.0 ≥2.0 ≥2.0 ≥1.7
    Heat capacity (J/g/K) 0.85
    Operation temperature (℃) -40 ~ 400
    Bending (angle180, R2) 50000 50000 50000 30000 20000 20000 20000
    Thermal capability ≥32,300 ≥45,000 ≥54,400 ≥68,000 ≥80,000 ≥105,000 ≥130,000
  • Item No. DSN5065UHTD DSN5070UHTD DSN5085UHTD DSN5100UHTD
    Thickness (um) 65±6 70±7 85±9 100±10
    X-Y axis (w/m.k) ≥1800 ≥1700 ≥1700 ≥1500
    Z axis(w/m.k) 15~20
    Density (g/cm³) ≥2.1 ≥1.9
    Heat capacity (J/g/K) 0.85
    Operation temperature (℃) -40~400
    Bending (angle180, R2) 20000
    Thermal capability ≥117,000 ≥119,000 ≥144,500 ≥150,000
  • Do you have MOQ?
    Created with Sketch.
    形状 Created with Sketch.
    No MOQ for the standard product.
  • Do you provide samples?
    Created with Sketch.
    形状 Created with Sketch.
    Yes, we do, and could deliver in 24 hours after confirmation for stock.
    And we can offer free samples within one SQM. Just please pay the shipping fee.
  • Are you a factory or trading company?
    Created with Sketch.
    形状 Created with Sketch.
    We are a professional manufacturer for over 10 years.
  • What is the lead time for mass production?
    Created with Sketch.
    形状 Created with Sketch.
    The lead time of mass production is about 5 - 7 days.
  • Can you provide finished product processing service?
    Created with Sketch.
    形状 Created with Sketch.
    Yes, we can provide the finished product after die-cutting.
  • Can it be customized according to the demands?
    Created with Sketch.
    形状 Created with Sketch.
    Yes, it can be made in different sizes or deeply processed.
Register to our newsletter and don’t miss anything anymore. We promise we will not spam you!
Why Use Flexible Graphite in EV Batteries?

With the continuous improvement of environmental awareness and the continuous progress of electric vehicle technology, the market prospects of electric vehicles are becoming increasingly broad. As the core component of electric vehicles, the market prospects of EV batteries are increasingly optimist


With the development of science and technology, the market has higher and higher requirements on the performance of UAV (Unmanned Aerial Vehicle), such as image transmission speed and clarity. However, as the volume of UAV should be as small as possible, it is increasingly difficult to design the cooling materials for its overall equipment.

Factors Affecting The Thermal Conductivity Of Graphite Sheets

Thermally conductive graphite sheet is a product made of natural graphite with good thermal conductivity. Sound is the main form of thermal conductivity of graphite. When this form of thermal conductivity changes, its thermal conductivity will change. The thermal conductivity, size, temperature, thickness and dispersion of graphite are all affected

Why Should Use Graphite Sheet To Make Flexible Battery?

Graphite sheets can be used as one material to produce the flexible printed battery. Graphite sheets are also flexible, lightweight, and thin, which makes them suitable for use in printed battery applications where space and weight are critical factors. Graphite sheets, as an important two-dimensional material, have broad application prospects. In the past decade, the application of graphite sheets will receive more attention and research in fields such as energy, environment, electronics, and materials.

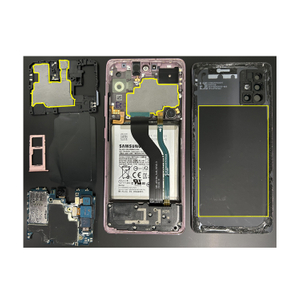

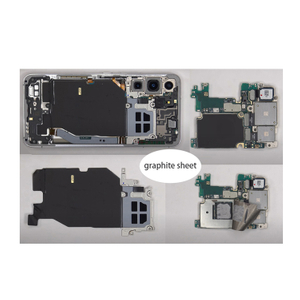

Dsn Graphite Sheet Is Used For Heat Dissipation Of Samsung Galaxy S22

Recently, Samsung officially announced the design story of Galaxy S22 series mobile phones. For the heat dissipation scheme, the HCD graphite heat sink of Desen is selected. Since Samsung adopted the graphite sheet program in 2014, Dasen has been one of the suppliers of Samsung's graphite sheet, providing Samsung with stable heat dissipation materi

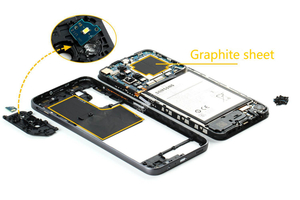

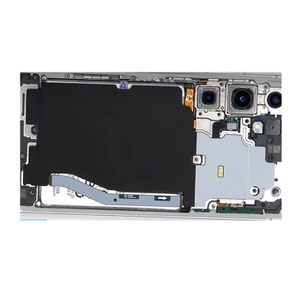

DSN Series Graphite Sheet Used in Samsung’s Galaxy S24 Smart Phone

Graphite sheet is a high-performance thermal and heat dissipation material that can help electronic products effectively dissipate heat, thereby improving the performance and service life of electronic products. Do you want to know how graphite sheets are applied on Samsung's GALAXYS24 Smart Phone?

An Ultrafast Rechargeable Aluminium-Ion Battery

There is an academic paper on the LETTER page of the world's earliest international scientific and technological journal ;NATURE;, called “An ultrafast rechargeable aluminium-ion battery”. In the academic paper, Dasen’s pyrolytic graphite sheet was used to make the electrochemical measurements. A Swagelok-type cell (1/2 in

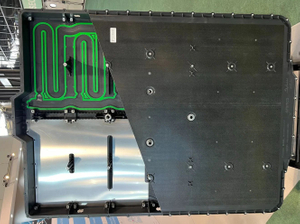

How To Cool The Battery Pack Of Electric Vehicle?

Structure and heat dissipation of battery pack for electric vehicle

Introduction To Three Ways Of Heat Dissipation And Principle Of Power Battery

The battery diaphragm is mainly to separate the positive and negative plates of the battery in a narrow space to prevent the short circuit caused by the contact between the two poles, but it can ensure the free passage of ions in the electrolyte between the positive and negative poles.

How To Cool The Power Battery Of New Energy Vehicle?

Thermal solicone pad used for cooling power battery of new energy vehicle. The silicone thermal pad has good tear strength, which can ensure the friction resistance and tear resistance of the battery in the normal use of the car.

How To Select Thermal Silicone Pad For Automobile Battery Pack?

How to quickly select the superior thermal conductive silicone pad for new energy power vehicle battery pack? 1. Service life: 10 years; 2. Lightweight and low density; 3. with good reliability and stability; 4. Low hardness, good compressibility and high tensile strength.

Pyrolytic Graphite Sheet Application On Smartphones Thermal Management

Pyrolytic Graphite Sheet (PGS) can deliver the heat, which is generated by the CPU/Flash chip on Mi Phones’ mainboard PCB, evenly to the middle metal steel bracket and framework. Meanwhile the heat from the high heat-making CPU chip can be spread throughout the plane of graphite sheet rapidly. * The chip’s heat passed on the surface of the

High Performance Thermal Conductive Adhesive

Power battery is the ;heart; of new energy vehicles. The battery pack of new energy vehicle needs to work in harsh environment for a long time, which will shorten the service life of battery. The uneven distribution of temperature field in the battery box will cause the performance imbalance of each battery module. The thermal mon


As the graphene heat dissipation film with high thermal conductivity, it has certain advantages under certain application conditions.

Flexible Graphite Foils For Semiconductor Manufacturing

Many processes in semiconductor manufacturing are carried out at very high temperatures and very corrosive environments, and the process must be operated in a high-temperature, clean and dust-free environment. High purity graphite has high temperature resistance, good electrical and thermal conducti

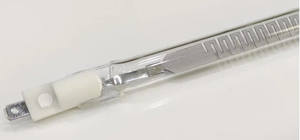

Graphite Black Technology Creates The Era Of Oven 3.0 For Solving The Problem Of "Slow Roasting"

At present, the traditional heater represented by metal alloy wire is widely used in the oven industry. Although the production cost of this material is controllable and easy to obtain, it has long response time and slow temperature rise. As a new two-dimensional carbon material, graphite sheet has excellent electrical and thermal conductivity. It

Thermal Conductivity Of Graphite Sheet

Thermally conductive graphite sheet is a very popular heat dissipation material widely used in electronic products. Graphite chemical composition of carbon elements, stable molecular structure, strong thermal conductivity, thermal conductive graphite sheet also has a strong thermal and electrical conductivity. The thermal conductivity of graphite s

Heat Dissipation Methods And Heat Conducting Materials For Household Induction Cooker Components

With the rapid development of science and technology, the traditional gas stove that needs to be heated by open fire is no longer needed. In order to pursue a higher quality of life, people have adopted the electromagnetic stove that has the characteristics of no open fire, no exhaust gas emission, no noise and greatly reducing the greenhouse effec

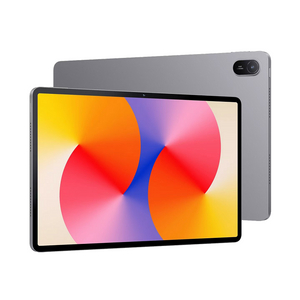

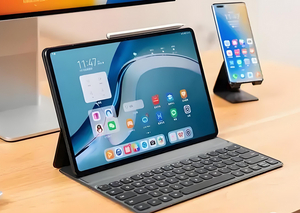

Graphite Sheet For Tablet Computer
