Guide To Carbon Fiber

Dasen can produce the carbon fiber including the carbon fiber prepreg , carbon fiber fabric ,carbon fiber cloth and carbon fiber products(carbon fiber tube, carbon fiber plate , carbon fiber ,carbon fiber sheet , carbon fiber part )

What is carbon fiber?

Do you know carbon fiber? It’s a new type of high-quality composite material.
Carbon fiber products are made by the carbon fiber prepreg or fabric. It is a composite material made of reinforcement, such as carbon fiber filaments, resin matrix, release film and other materials, processed by coating, hot pressing, cooling, laminating, rolling and other processes.
Carbon fiber prepreg is made of carbon fiber by woven unidirectional orplain weaving / twill weaving fabric. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings.
Performance Parameters
  • Item No. FAW (g/㎡) RC (%) Total weight(g/㎡) Width (mm) Width(mm) Length(M) Fiber modulus / strength
    DSN-45-0250 25 45 45.5 0.025 1000 150 24T/30T/40T
    T300/T700/T800
    DSN-40-0300 30 40 50 0.03 1000 150
    DSN-38-0500 50 38 80 0.06 1000 150
    DSN-38-0750 75 38 121 0.08 1000 150
    DSN-36-1000 100 36 156 0.1 1000 150
    DSN-36-1250 125 36 195 0.13 1000 100
    DSN-35-1500 150 35 231 0.15 1000 100
    DSN-35-1750 175 35 269 0.18 1000 100
    DSN--35-2000 200 35 308 0.2 1000 100
    Remarks:
    1.Resin content can be customized, tolerance: ±2%
    2.Fiber weight: 25-400g/㎡, can be customized
    3.The resin types are various, such as flame retardancy, low halogen, fast curing, and bio based materials etc.
    4.Storage conditions: recommended low temperature storage, under -18℃(shelf life: 6 months); under 0℃(shelf life: 3 months); under 25℃(shelf life: 20 days)
  • Item No. FAW (g/㎡) RC (%) Total weight(g/㎡) Fabric type Category Fiber origin Width(mm) Length(M)
    DSN-1-40-120P 120 40~50 200 Plain 1K Chinese/Imported 1000 100
    DSN-1-40-120T 120 40~50 200 Twill 1K Chinese/Imported 1000 100
    DSN-3-40-200P 200 40~50 333 Plain 3K Chinese/Imported 1000 100
    DSN-3-40-200T 200 40~50 333 Twill 3K Chinese/Imported 1000 100
    DSN-3-40-240P 240 40~50 400 Plain 3K Chinese/Imported 1000 100
    DSN-3-40-240T 240 40~50 400 Twill 3K Chinese/Imported 1000 100
    DSN-6-40-280P 280 40~50 467 Plain 6K Chinese/Imported 1000 100
    DSN-6-40-280T 280 40~50 467 Twill 12K Chinese/Imported 1000 100
    DSN-12-40-400P 400 40~50 667 Plain 12K Chinese/Imported 1000 100
    DSN-12-40-400T 400 40~50 667 Twill 3K Chinese/Imported 1000 100
    Remarks:
    1.Resin content can be customized, tolerance: ±2%
    2.The resin types are various, such as flame retardancy, low halogen, fast curing, and bio based materials etc.
    3.Storage conditions: recommended low temperature storage, under -18℃(shelf life: 6 months); under 0℃(shelf life: 3 months); under 25℃(shelf life: 20 days)

    1. High strength, low density, light weight,strength can reach 6-12 times of steel, density is only one quarter of steel.
    2. High fatigue strength;
    3. High dimensional stability;
    4. Excellent electrical and thermal conductivity;
    5. Excellent vibration attenuation performance;
    6. Excellent heat resistance;
    7. The friction coefficient is small and the wear resistance is excellent;
    8. Corrosion resistant and long life.
    9. X-ray permeability is large.
    10. Good plasticity, can be made into any shape according to the shape of the mold, easy to form and easy to process.
Application
FAQ
  • What kind of prepreg do you have?
    Created with Sketch.
    形状 Created with Sketch.
    Carbon fiber prepreg , Glass fiber prepreg , Aramid fiber prepreg.
  • What kind of carbon fiber prepreg / fabric you can produce?
    Created with Sketch.
    形状 Created with Sketch.
    UD carbon fiber prepreg, Twill / Plain carbon fiber prepreg / fabric
  • How long can prepreg be kept at room temperature?
    Created with Sketch.
    形状 Created with Sketch.
    20 days.
  • What is the optimum storage temperature for prepreg?
    Created with Sketch.
    形状 Created with Sketch.
    Recommended low temperature storage
    under -18℃(shelf life: 6 months);
    under 0℃(shelf life: 3 months);
    under 25℃(shelf life: 20 days)
  • What parameters do we need to provide when we ask for carbon fiber prepreg quote?
    Created with Sketch.
    形状 Created with Sketch.
    For UD prepreg , we should know the filament brand, GSM and resin percent.
    For twill/plain prepreg/fabric, we should know the filament brand, GSM ,resin percent and filament quantity.
  • Can it be customized according to the demands?
    Created with Sketch.
    形状 Created with Sketch.
    Yes, it can be made in different sizes or deeply processed.
CLICK HERE FOR MORE INFORMATION
Register to our newsletter and don’t miss anything anymore. We promise we will not spam you!
LATEST NEWS
Why Use Graphite Thermal Conductive Foil for AI Glasses?

Graphite thermal conductive foil, which has high thermal conductivity and flexibility, effectively adheres to the internal structure of glasses to achieve rapid heat dissipation of chips. Integrating graphite heat dissipation foil layer, utilizing its ultra-high thermal conductivity to dissipate SoC

Graphite Sheets in 5G Communications: Critical Application Points

As global 5G base stations surpass 18 million units, graphite sheets with thickness under 0.1mm are becoming indispensable components, thanks to their exceptional thermal conductivity (1000-2000 W/mK).

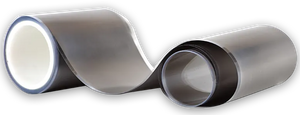

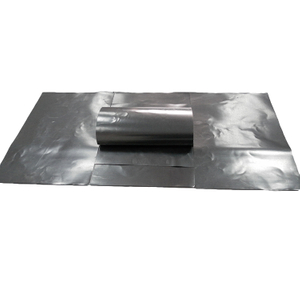

How to process high thermal conductivity natural graphite sheet?

High thermal conductivity graphite sheet is a new type of two-dimensional material for thermal conductivity and heat dissipation. Due to its excellent thermal shock resistance, low resistivity, high modulus, corrosion resistance, especially high thermal conductivity, low thermal expansion coefficient, and low density, it has attracted the attention of researchers at home and abroad in practical applications. It can be composite with materials such as metals, resins, ceramics, etc. to meet more design functions and needs. It is considered one of the most promising high-efficiency thermal management composite material reinforcements and an important material for electronic devices to break through the "heat dissipation" problem in the 5G era.

What Is A Graphene Thermal Pad with A Thermal Conductivity Greater Than 30W?

Graphene thermal pad bases on graphene materials with high-quality properties such as low density, high thermal conductivity, and high compressibility, a graphene thermal pad with anti powder coating is prepared using edge wrapping or adhesive film coating technology. As a thermal interface material, it can effectively replace thermal conductive silicone pads, thermal conductive silicone grease, etc., providing excellent heat dissipation solutions for power semiconductors, consumer electronics, etc.

How Graphite Sheets Improve Medical Device Performance & Safety?

Graphite sheets, with their excellent thermal conductivity, electrical conductivity, corrosion resistance, and bio-compatibility, play a vital role in various components of medical devices.

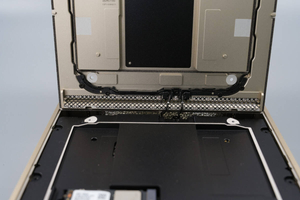

Tablets and Ultra books

The thermal processor needs cooling, and the shell’s hot spot must be eliminated. All these must be done by thin and efficient heat-transfer products. With the widest range of ultra-high performance pyrolytic graphite sheets, Dasen have the suitable thermal solutions to meet the performance needs of the industry.

Graphite Sheet For Tablet Computer

With the continuous development of technology, the performance of tablet computers has become increasingly powerful. For the convenience of carrying and using, tablet computers are becoming thinner and thinner, so the internal of the tablet computer is extremely small, and heat is easily accumulated on the heat source chip and battery, which

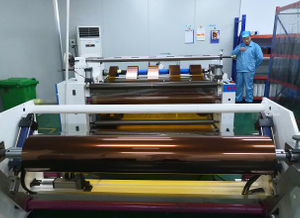

Graphite material application on heating tube

1. Heating tube - Graphite materialThe graphite material is a customized PI (polyimide) film system. Through a specific process, the PI film is carbonized and graphitized at high temperature to obtain semi-finished foamed graphite with a thickness of about 200um. The last step needs to accurately co

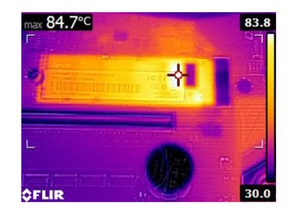

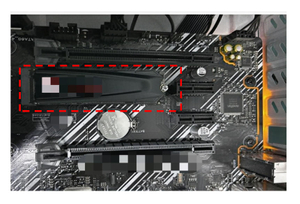

Graphite sheet application on SSD flash memory

SSD flash memory will wear out over time when exposed to high temperatures. This loss leads to electron leakage and misidentification errors. When an SSD overheats, the controller may fail, resulting in various erratic disk behaviors. For example, your SSD is not recognized by Windows. Your computer

What are the applications of prepreg in the field of batteries?

What are the applications of prepreg in the field of batteries?

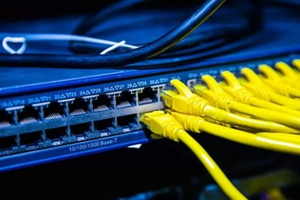

Graphite Sheet Application on Switch

Simulate the hotspot area inside the switch, and test the temperature change of hot spot with graphite and without graphite under the same conditions.

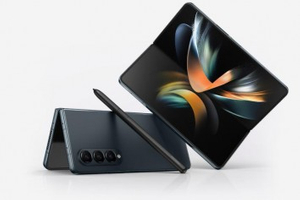

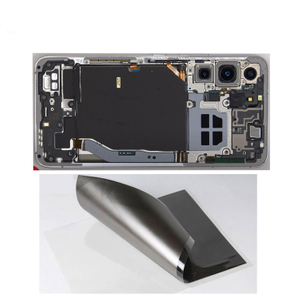

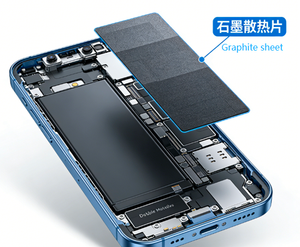

Graphite Sheet Application on Mobile Phone

1. Mobile phone frame graphite VC application

Medical Device

In daily wearable devices, graphite also plays a unique role and has significant effects on health physiotherapy. For example, graphite waist protector is composed of an inner liner, a graphite heating film and an outer coating. The thermal energy generated by the carbon atoms in it rapidly heats up within 3 seconds, and can be heated to 20 ℃ to 60 ℃.

Automotive, Marine, And Batteries

The battery module must be safe, light and compact and suitable for battery electric vehicles and hybrid electric vehicles. Using traditional aluminum heat dissipation will make the battery thick and heavy. While graphite sheet directly replaces aluminum and it can cool the battery during normal charge/discharge operation.

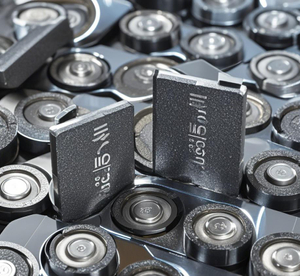

In The Realm of Modern Battery Technology, Graphite Sheet Emerges As A Game-changer.
