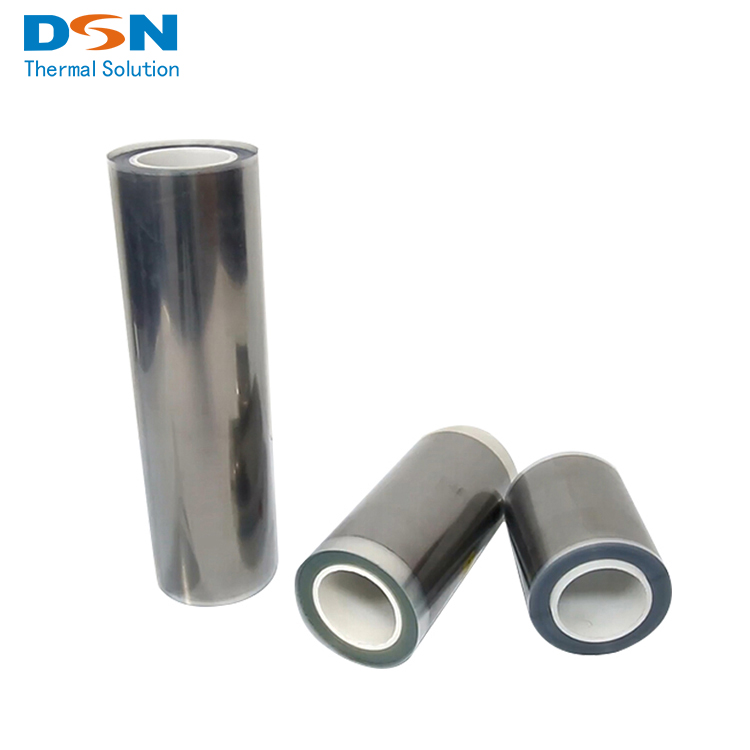

DSN5040 HTD is thermal conductivity artificial graphite sheet with thickness of 40um.
40um graphite sheet has 1700W/m-K thermal conductivity.

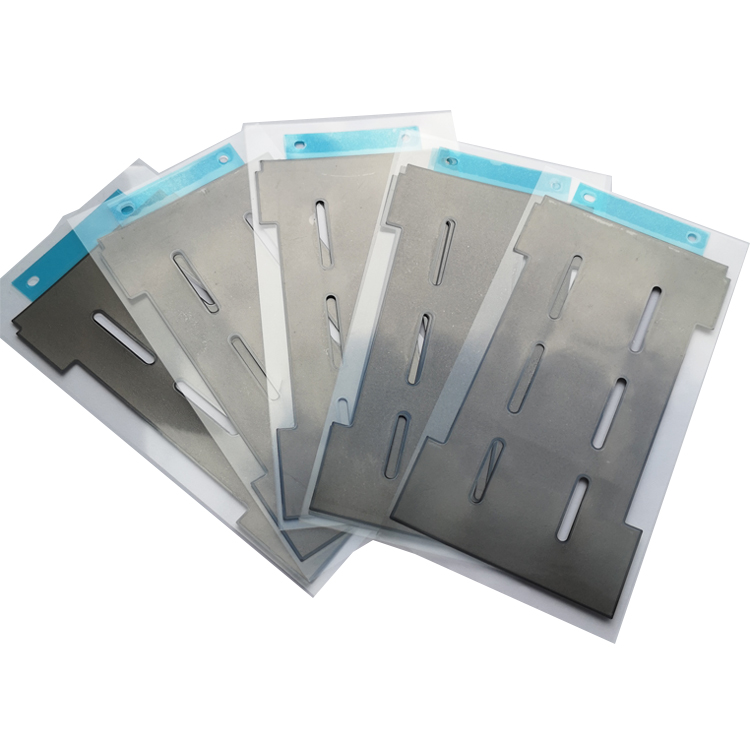

According to different heat dissipation requirements, graphite can be composited with many materials
and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
Can be used in automotive, ship, submarine, engine rotation axis, semiconductor manufacturing
equipment (Sputtering, Dry etching, Steppers), etc.
DSN5040 HTD
DSN
| Quantity: |
|---|
Product Description
| PART NO | Data Sheet | Size(mm) -maximum width | Thickness (μm) | Thermal conductivity/W/(m・K) | Style | Withstand temperature (℃) | Remark |
DSN5040 HTD |  | 200 | 40 | ≥1700 | Graphite Sheet 40um+PET Release liner | （-40~400） |
