Summary

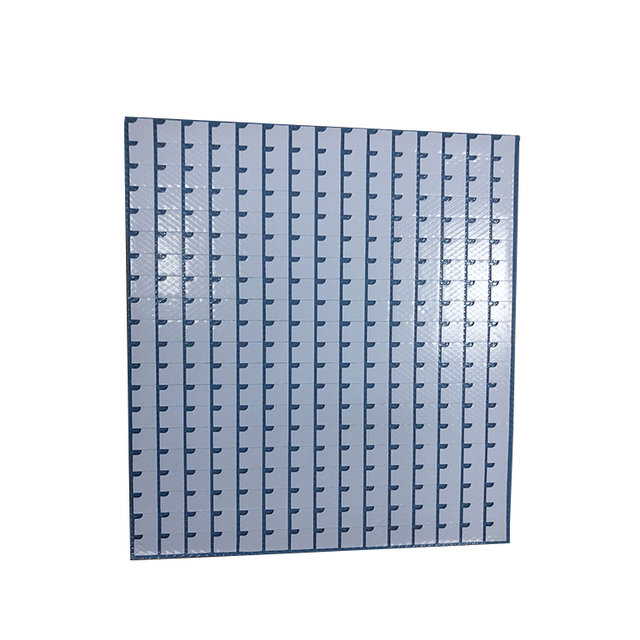

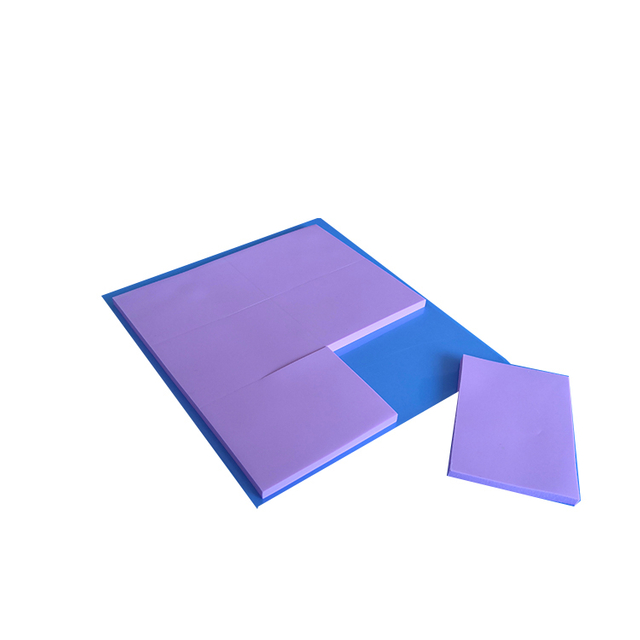

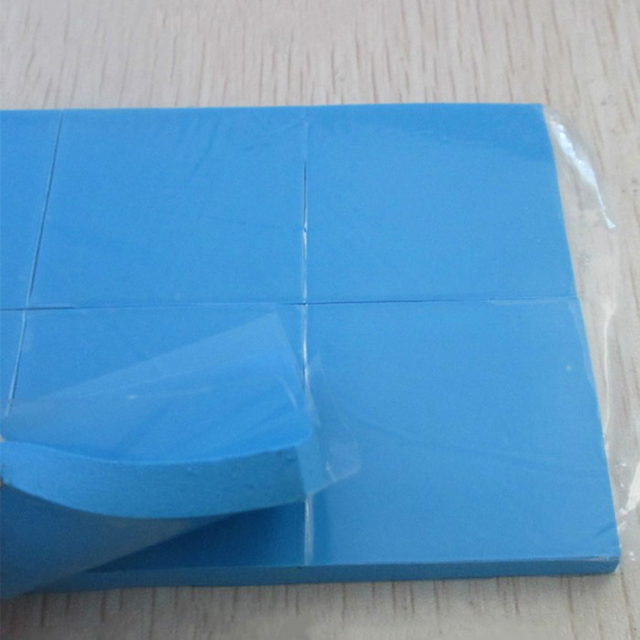

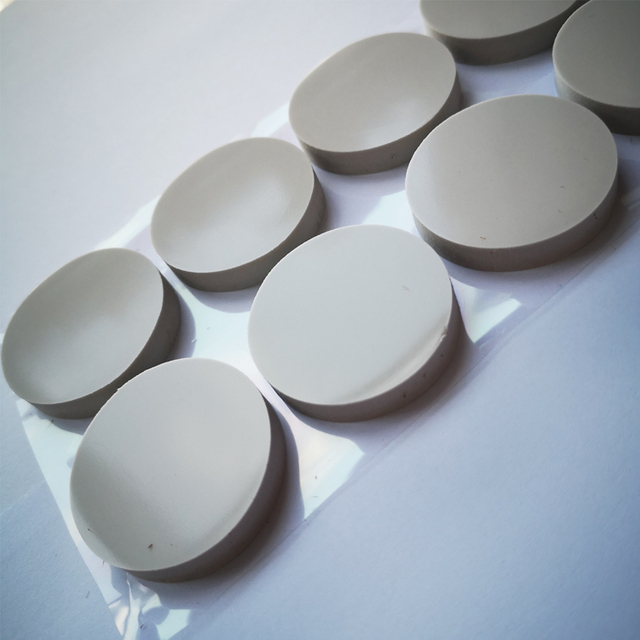

The thermal conductive silicone pad is a kind of heat conducting material synthesized by special process, which is based on specially processed silicone gel and adding various kinds of polymer materials with excellent thermal conductivity. It can fill gaps and complete heat transfer between heating parts and heat dissipating parts. It also plays the role of insulation, shock proof and sealing. It can meet the design requirements of miniaturization and ultra-thin equipment.
SK series heat conductive pads are environmentally friendly, flexible and compressible; high efficiency, high insulation, high flame retardant and high compression capacity; high and low temperature resistance, non-oxidation, low oil output, good weather resistance; suitable for various demanding application areas, with good thermal conductivity and suitable for filling mechanism gaps, improving heat transfer efficiency between heating elements and metal radiators.
Application
Smart phones, tablet PC, laptop, CPU/GPU chip, video card, memory, heat dissipation module, power supply, lithium battery, routers, set-top boxes, switches, projectors, PDP/LCD/LED display, LED lighting, navigation, communications, security monitoring, elevator control, automotive electronics, new energy car battery, LED lamp, solar inverter, household appliances, aerospace, military industry, etc.

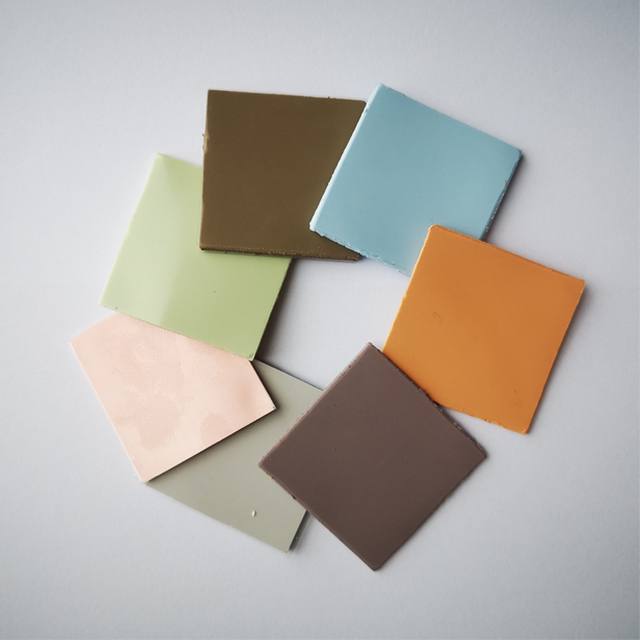

Name | Item No. | Thermal conductivity (W/mK) (10%) (±) | Hardness (Shore 00) | Color | Thickness (mm) (10%) |
Thermal silicone pad | DSN SK12 | 1.2 | 40~60 | White gray | 0.2~10 |
DSN SK15 | 1.5 | 40~60 | White gray | 0.2~10 | |
DSN SK20 | 2.0 | 40~60 | Gray | 0.2~10 | |
DSN SK25 | 2.5 | 40~60 | Orange | 0.3~5 | |
DSN SK30 | 3.0 | 40~60 | Blue | 0.3~5 | |
DSN SK40 | 4.0 | 40~60 | Brown | 0.5~5 | |
DSN SK50 | 5.0 | 50~70 | Dark red | 0.5~5 | |
DSN SK60 | 6.0 | 50~70 | Light gray | 0.5~5 | |
DSN SK80 | 8.0 | 60~80 | Gray | 0.5~5 | |
DSN SK100 | 10.0 | 60~80 | Gray | 1~5 | |
DSN SK120 | 12.0 | 60~80 | Gray | 1~5 | |
DSN SK150 | 15.0 | 60~80 | Gray | 1~5 | |
Ultra soft gap pad | DSN SK12-US | 1.2 | 15~25 | Dark red + white | 0.5~6 |
Thermal fabric | DSN SK800 | 0.8 | 80 Shore A | Gray | 0.23 |
