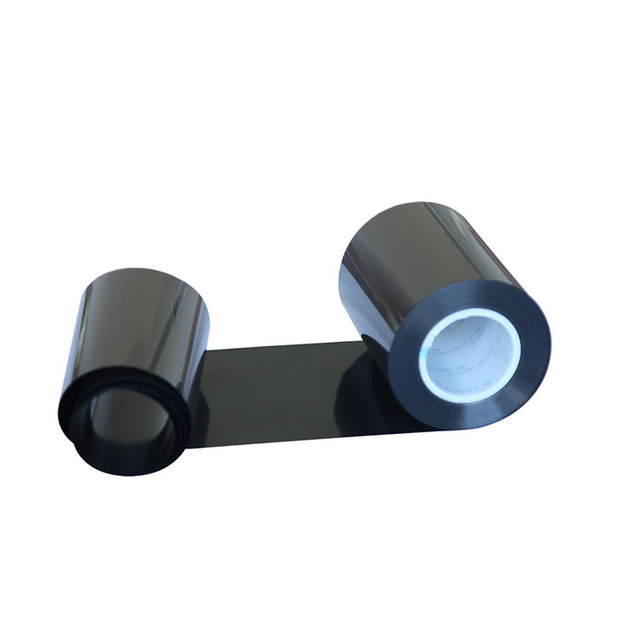

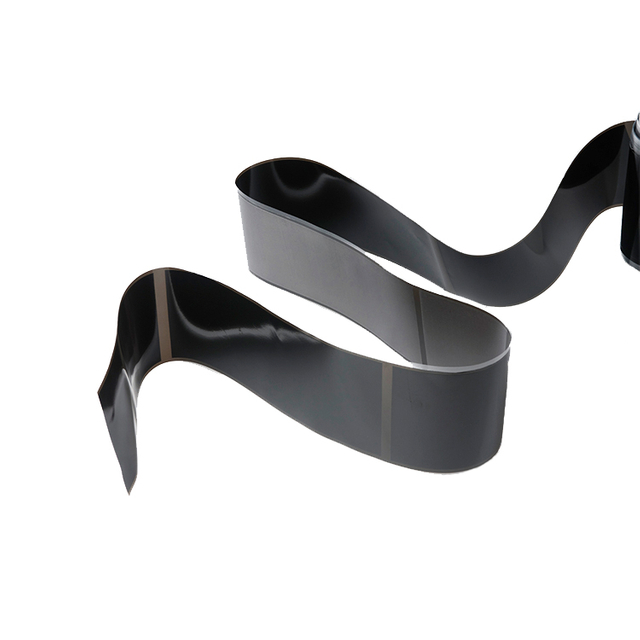

Graphite sheet is a new type of thin film material made of polyimide by sintering and calendering.
It has high thermal conductivity, high electrical conductivity and excellent flexibility in product design.
According to different application, DASEN can provide graphite products with ordinary performance,
high performance and ultra-high performance.

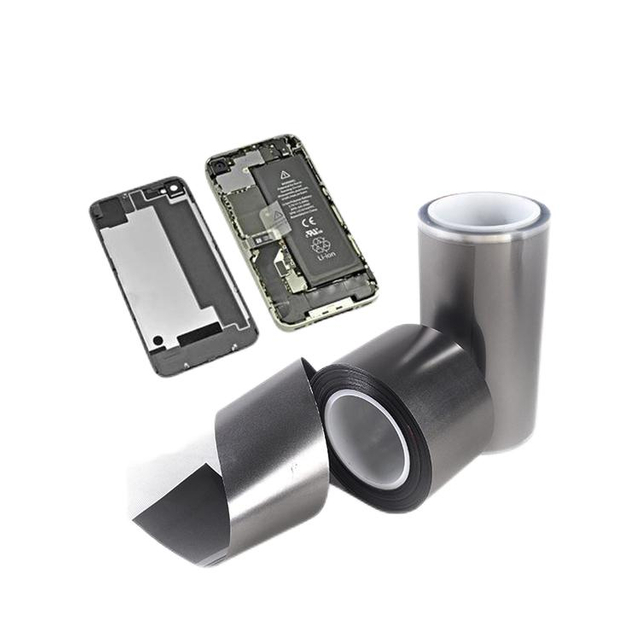

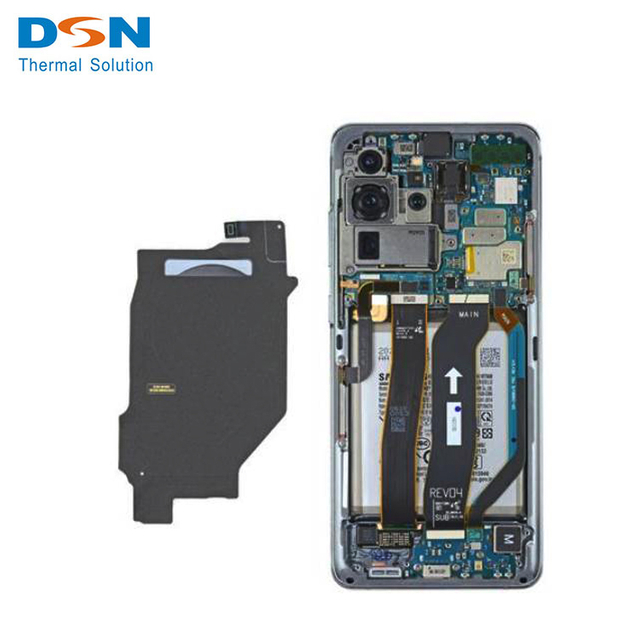

Graphite sheets have excellent thermal conductivity, up to 2200W/mk. In fields such as electronic devices, power electronics, and LED lighting, graphite sheets can improve the heat dissipation effect of equipment and protect devices from damage caused by overheating.
Graphite sheets have excellent conductivity and can be used as conductive materials in electronic devices, batteries, electrodes, electromagnetic shielding, and other fields.
Features of graphite sheet:
Excellent thermal conductivity and electrical conductivity
Light specific gravity: 1.0~2.2g/cm3
Low thermal resistance, soft and easy to cut
Ultra thin, thickness: 0.017~0.15mm
It can be processed in combination with other materials such as metal, plastic, adhesive, etc
Item No.
DSN5017
17um
DSN5025
25um
DSN5032
32um
DSN5040
40um
DSN5050
50um
DSN5070
70um
DSN5080
80um
DSN5100
100um
Thickness (um)
17±3
25±3
32±4
40±4
50±5
70±7
80±8
100±10
Thermal
conductivity
X-Y axis (w/m.k)
1700~1900
1700~1850
1550~1750
1450~1650
1400~1600
1200~1400
1000~1200
1000~1200
In-plane thermal diffusivity (mm²/s)
950~1060
950~1040
910~1030
900~1020
870~990
830~970
730~880
780~940
Density (g/cm³)
2.10±0.1
2.10±0.10
2.00±0.1
1.90±0.1
1.90±0.1
1.70±0.1
1.60±0.1
1.50±0.1
Heat capacity
(J/g/K)
0.85±0.01
Operation temperature (℃)
-40~400
Conductivity (s/m)
3.49 x 107
2.46 x 107
1.49 x 107
1.38 x 107
---
7.43 x 106
---
5.41 x 106
Bending
(angle180, R5)
50,000
50,000
50,000
30,000
30,000
20,000
20,000
20,000
Remark:
Above Thermal conductivity was tested by third-party testing organization (Netzsch, Germany) according to the laser scattering.
Heat-resistance temperature is the graphite sheet excluding PET film.
