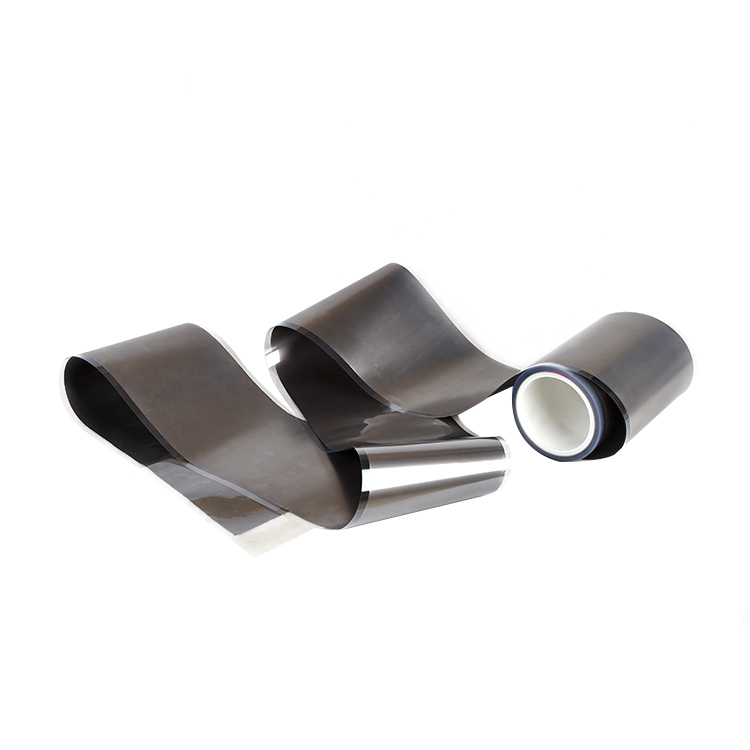

60μm ULTRA-HIGH PERFORMANCE GRAPHITE SHEET is ultra high thermal conductive artificial graphite sheet with thickness of 0.06mm.
The thermal conductivity of 60μm graphite sheet is 1800W/mK.
According to different heat dissipation requirements, graphite can be composited with many materials and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
The material can be used in automotive, ship, submarine, engine rotation axis, semiconductor manufacturing equipment (Sputtering, Dry etching, Steppers), heat exchanger, thermal cycler etc.
DSN5060UHTD
DSN
| Quantity: | |
|---|---|
Product Description
Product Description
| Part No. | Thickness | Size - maximum width | Thermal conductivity | Density | Style | Withstand temperature |
| DSN5060 UHTD | 60±6um | 150mm | ≥1800 W/(m・K) | ≥2.0g/cm3 | Graphite sheet 60um + PET release liner | -40~400℃ |
