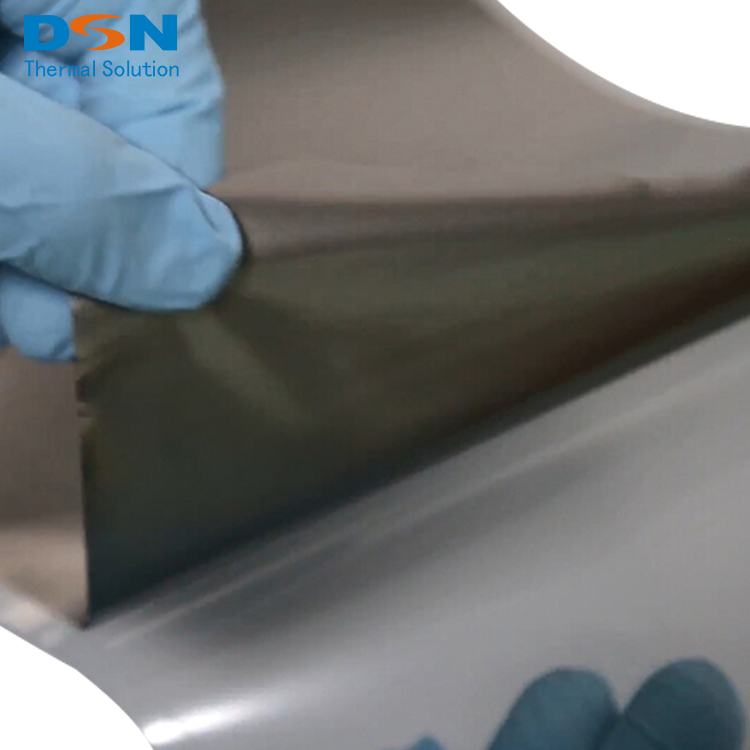

DSN5050UHTD ULTRA-HIGH PERFORMANCE FLEXIBLE GRAPHITE FOIL is ultra high thermal conductive sythetic graphite sheet with thickness of 0.05mm.
The thermal conductivity of 50μm graphite sheet is 1900W/mK.
According to different heat dissipation requirements, graphite can be composited with many materials and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
The material can be used in automotive, ship, submarine, engine rotation axis, semiconductor manufacturing equipment (Sputtering, Dry etching, Steppers), etc.
DSN5050UHTD
DSN
| Quantity: | |
|---|---|
Product Description
Product Description
| Part No. | Thickness | Size - maximum width | Thermal conductivity | Density | Style | Withstand temperature |
| DSN5050 UHTD | 50±5um | 150mm | ≥1900 W/(m・K) | ≥2.1g/cm3 | Graphite sheet 50um + PET release liner | -40~400℃ |
