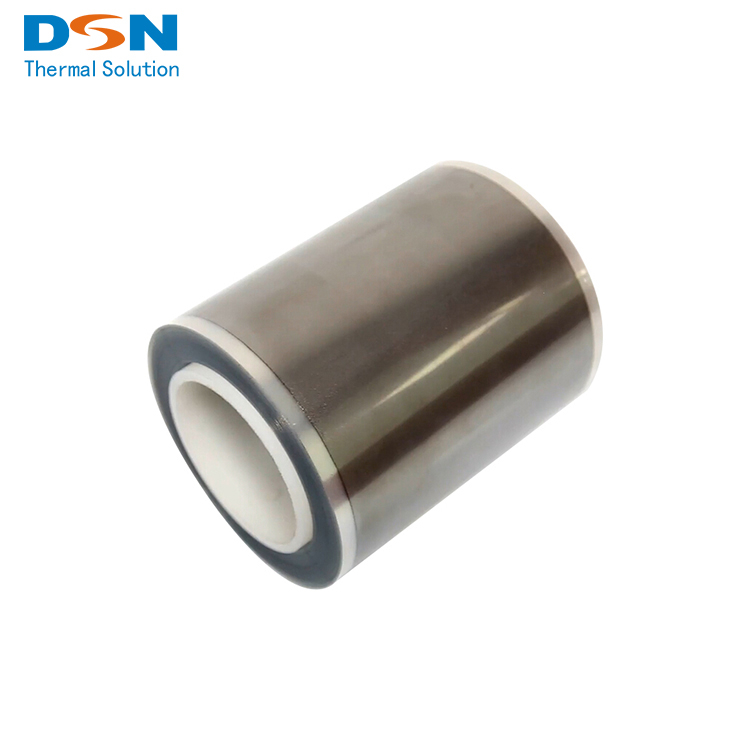

DSN5100 UHTD is ultra high thermal conductive artificial graphite sheet with thickness of 100um.
The thermal conductivity of 100um graphite sheet is 1850W/mK.
According to different heat dissipation requirements, graphite can be composited with many materials and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
The material can be used in automotive, ship, submarine, engine rotation axis, semiconductor manufacturing equipment (Sputtering, Dry etching, Steppers), etc.
DSN5100 UHTD
DSN
| Quantity: | |
|---|---|
Product Description
Product Description
| Part No. | Thickness | Size - maximum width | Density | Thermal conductivity | Style | Withstand temperature |
| DSN5100 UHTD | 100±10um | 150mm | ≥1.9g/cm3 | ≥1600W/mK | Graphite sheet 100um + PET release liner | -40~400℃ |
