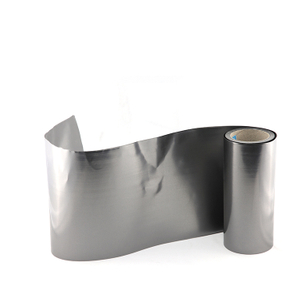

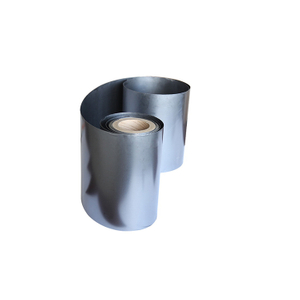

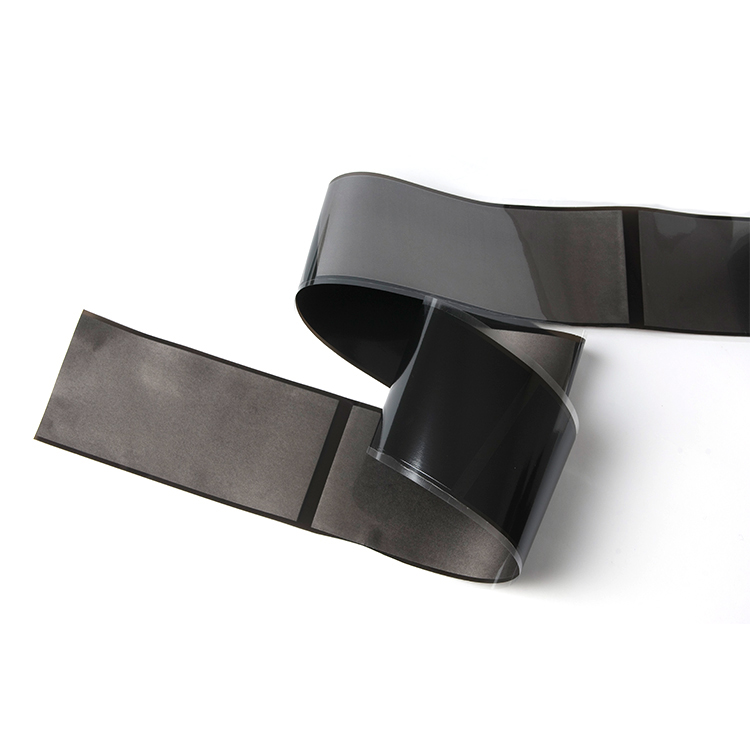

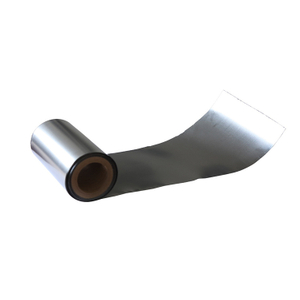

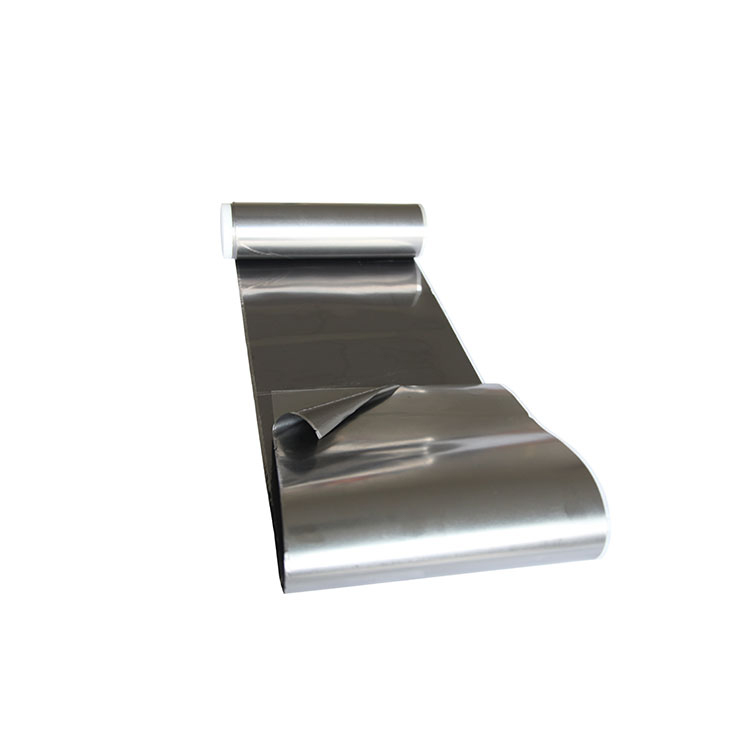

DSN5025 25μm pyrolytic graphite sheet has 1500~1700W/m-K thermal conductivity.
According to different heat dissipation requirements, graphite can be composited with many materials and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
It can be used in , electronics industry, automotive, solar panels, ship, submarine, engine rotation axis, semiconductor manufacturing equipment (Sputtering, Dry etching, Steppers), etc.
DSN5025
DSN
| Quantity: | |
|---|---|
Product Description
Product Description
Part No. | Max. width(mm) | Thermal conductivity W/(m・K) | Structure | Withstand temperature (℃) | Remark |
DSN5025 | 200 | 1500~1700 | Graphite sheet 25um + PET release liner 50um | （-40~400） | |
DSN5025-05DC | 200 | 1500~1700 | Graphite sheet 25um + Double side adhesive 5um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-05DC05DC | 200 | 1500~1700 | Single side adhesive 5um + Graphite sheet 25um + Double side adhesive 5um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-05DC05SB | 200 | 1500~1700 | Single side adhesive 5um + Graphite sheet 25um + Double side adhesive 5um + PET release liner 50um | （-40~400） | C:Clarity+B: Black |
DSN5025-05DC05SC | 200 | 1500~1700 | Single side adhesive 5um + Graphite sheet 25um + Double side adhesive 5um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-10DC | 200 | 1500~1700 | Graphite sheet 25um+ Double side adhesive 10um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-10DC10DC | 200 | 1500~1700 | Single side adhesive 10um + Graphite sheet 25um + Double side adhesive 10um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-10DC10SC | 200 | 1500~1700 | Single side adhesive 10um + Graphite sheet 25um + Double side adhesive 10um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-10DC10SB | 200 | 1500~1700 | Single side adhesive 10um + Graphite sheet 25um + Double side adhesive 10um + PET release liner 50um | （-40~400） | C:Clarity+B: Black |
DSN5025-05DC10SC | 200 | 1500~1700 | Single side adhesive 10um + Graphite sheet 25um + Double side adhesive 5um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-10DC05SC | 200 | 1500~1700 | Single side adhesive 5um + Graphite sheet 25um + Double side adhesive 10um + PET release liner 50um | （-40~400） | C:Clarity |
DSN5025-05DC10SB | 200 | 1500~1700 | Single side adhesive 10um + Graphite sheet 25um + Double side adhesive 5um + PET release liner 50um | （-40~400） | C:Clarity+B: Black |
DSN5025-10DC05SB | 200 | 1500~1700 | Single side adhesive 5um + Graphite sheet 25um + Double side adhesive 10um + PET release liner 50um | （-40~400） | C:Clarity+B: Black |
