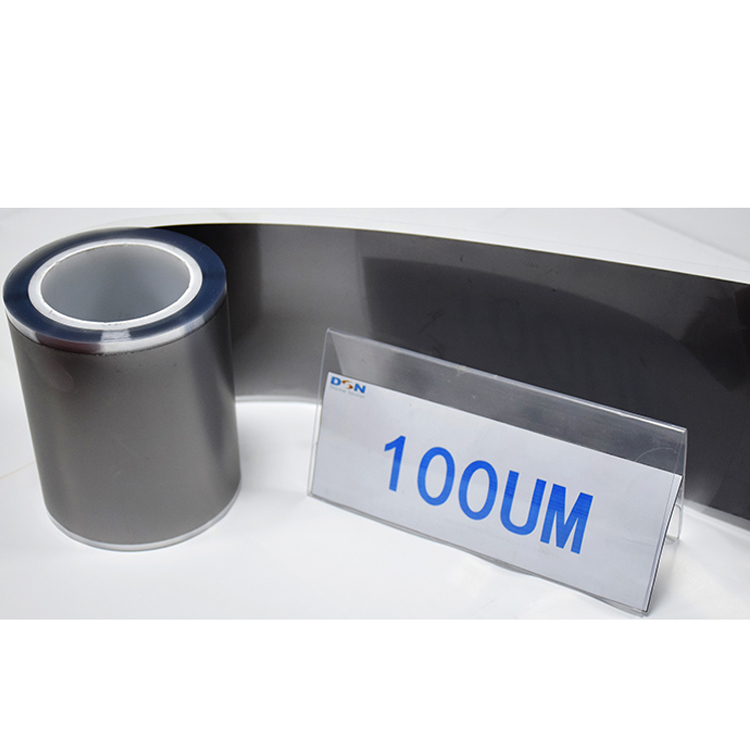

100μm ULTRA-HIGH PERFORMANCE GRAPHITE SHEET is ultra high thermal conductive artificial graphite sheet with thickness of 0.1mm.
The thermal conductivity of 100μm graphite sheet is 1850W/mK.
According to different heat dissipation requirements, graphite can be composited with many materials and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
The material can be used in automotive, ship, submarine, engine rotation axis, semiconductor manufacturing equipment (Sputtering, Dry etching, Steppers), heat exchanger, thermal cycler, etc.
DSN5100UHTD
DSN
| Quantity: | |
|---|---|
Product Description
Product Description
| Part No. | Thickness | Density | Thermal conductivity | Style | Withstand temperature |
| DSN5100 UHTD | 100±10um | ≥1.9g/cm3 | ≥1600w/mk | Graphite sheet 100um + PET release liner | -40~400℃ |
