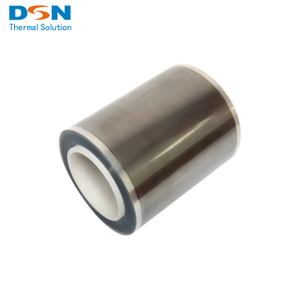

DSN5050 is thermal conductivity artificial graphite sheet with thickness of 50um.
50um graphite sheet has 1200~1400W/m-K thermal conductivity.
According to different heat dissipation requirements, graphite can be composited with many materials
and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
Can be used in automotive, ship, submarine, engine rotation axis, semiconductor manufacturing
equipment (Sputtering, Dry etching, Steppers), etc.
DSN5050
DSN
| Quantity: |
|---|
Product Description
Product Description
| PART NO | Data Sheet | Size(mm) -maximum width | Thickness (μm) | Thermal conductivity/W/(m・K) | Style | Withstand temperature (℃) | Remark |
| DSN5050 | 200 | 50 | 1100~1300 | Graphite Sheet 50um+PET Release liner 75um | （-40~400） | ||
| DSN5050-05DC | 200 | 55 | 1100~1300 | Graphite Sheet 50um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-05DC05DC | 200 | 60 | 1100~1300 | Single Side Adhesive 5um+Graphite Sheet 50um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-05DC05SB | 200 | 60 | 1100~1300 | Single Side Adhesive 5um+Graphite Sheet 50um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-05DC05SC | 200 | 60 | 1100~1300 | Single Side Adhesive 5um+Graphite Sheet 50um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-10DC | 200 | 60 | 1100~1300 | Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-10DC10DC | 200 | 70 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-10DC10SC | 200 | 70 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-10DC10SB | 200 | 70 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-12DC | 200 | 62 | 1100~1300 | Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-12DC12DC | 200 | 74 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-12DC12SB | 200 | 74 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-12DC12SC | 200 | 74 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-05DC10SC | 200 | 65 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 50um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-05DC12SC | 200 | 57 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 50um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-10DC05SC | 200 | 67 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-10DC12SC | 200 | 72 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-12DC05SC | 200 | 67 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-12DC10SC | 200 | 72 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity | |
| DSN5050-05DC10SB | 200 | 65 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 50um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-05DC12SB | 200 | 67 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 50um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-10DC05SB | 200 | 65 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-10DC12SB | 200 | 72 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 50um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-12DC05SB | 200 | 67 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black | |
| DSN5050-12DC10SB | 200 | 72 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 50um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
