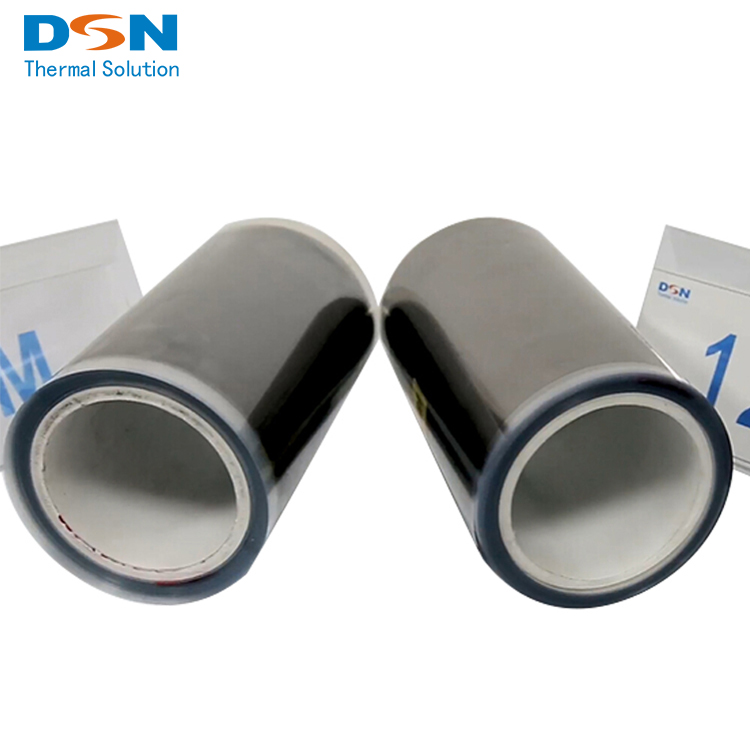

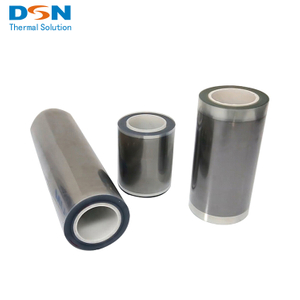

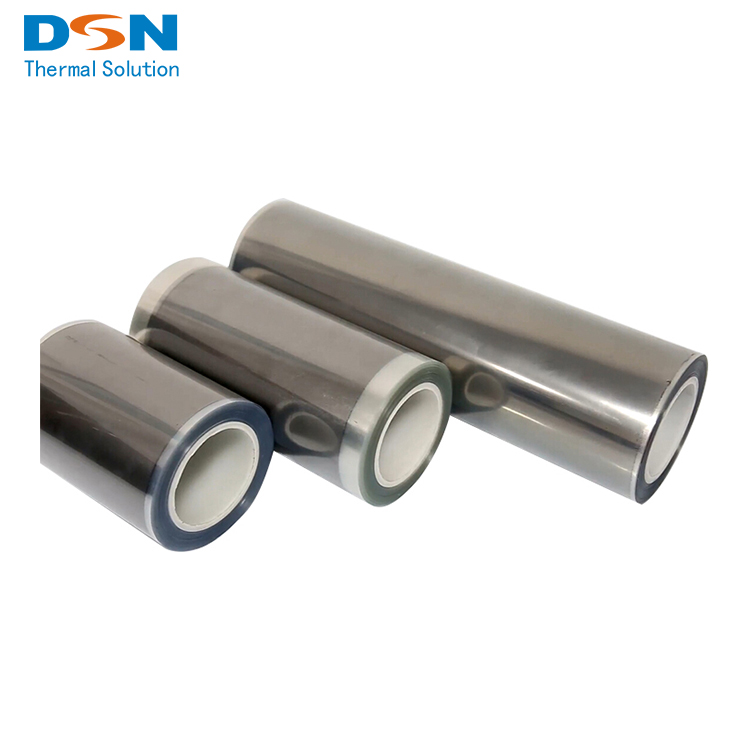

DSN5070 70um graphite sheet has 1100~1300W/m-K thermal conductivity.
According to different heat dissipation requirements, graphite can be composited with many materials and get various structures, such as graphite + copper + adhesive + thermally conductive silicone pad.
It can be used in automotive, ship, submarine, engine rotation axis, semiconductor manufacturing equipment (Sputtering, Dry etching, Steppers), etc.
DSN5070
DSN
| Quantity: | |
|---|---|
Product Detail
Product Description
| PART NO | Size(mm) -maximum width | Thermal conductivity/W/(m・K) | Style | Withstand temperature (℃) | Remark |
| DSN5070 | 200 | 1100~1300 | Graphite Sheet 70um+PET Release liner 75um | （-40~400） | |
| DSN5070-05DC | 200 | 1100~1300 | Graphite Sheet 70um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-05DC05DC | 200 | 1100~1300 | Single Side Adhesive 5um+Graphite Sheet 70um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-05DC05SB | 200 | 1100~1300 | Single Side Adhesive 5um+Graphite Sheet 70um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-05DC05SC | 200 | 1100~1300 | Single Side Adhesive 5um+Graphite Sheet 70um+Double Side Adhesive 5um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-10DC | 200 | 1100~1300 | Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-10DC10DC | 200 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-10DC10SC | 200 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-10DC10SB | 200 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-12DC | 200 | 1100~1300 | Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-12DC12DC | 200 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-12DC12SB | 200 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-12DC12SC | 200 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-05DC10SC | 200 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 70um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-05DC12SC | 200 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 70um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-10DC05SC | 200 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-10DC12SC | 200 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-12DC05SC | 200 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-12DC10SC | 200 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity |
| DSN5070-05DC10SB | 200 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 70um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-05DC12SB | 200 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 70um+Double Side Adhesive 05um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-10DC05SB | 200 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-10DC12SB | 200 | 1100~1300 | Single Side Adhesive 12um+Graphite Sheet 70um+Double Side Adhesive 10um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-12DC05SB | 200 | 1100~1300 | Single Side Adhesive 05um+Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
| DSN5070-12DC10SB | 200 | 1100~1300 | Single Side Adhesive 10um+Graphite Sheet 70um+Double Side Adhesive 12um + PET Release liner 75um | （-40~400） | C:Clarity+B: Black |
