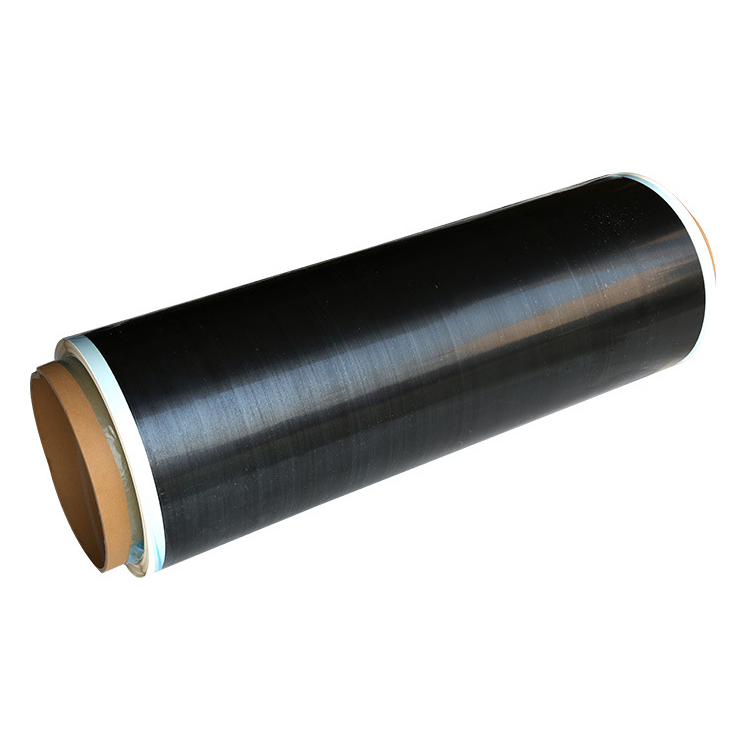

UD carbon fiber prepreg

Carbon fiber prepreg is a composite material made of reinforcement, such as carbon fiber filaments, resin matrix, release paper and other materials, processed by coating, hot pressing, cooling, laminating, rolling and other processes.

Carbon Fiber Fabric is made of carbon fiber by woven unidirectional, plain weaving or twill weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins.
  • DSN

Availability:
Quantity:
facebook sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

Prepreg is a composite of resin matrix and reinforcement made by impregnating continuous fibers or fabrics with a resin matrix under strict control.


The main products include: gram weight can be from 30g/m2 to 200g/m2, resin content uniformity control within 0.5%, fiber weight and resin content can be produced according to customer requirements.


UD fiber prepreg has good mechanical properties, and the fiber resin content is easy to manipulate, so the structure can be designed according to the load-bearing requirements of the parts to achieve the best structural performance.

492


Features:

1. High strength, low density,  light weight,strength can reach 6-12 times of steel, density is only one quarter of steel.

2. High fatigue strength.
3. High dimensional stability.
4. Excellent electrical and thermal conductivity.
5. Excellent vibration attenuation performance.
6. Excellent heat resistance.
7. The friction coefficient is small and the wear resistance is excellent.
8. Corrosion resistant and long life.
9. X-ray permeability is large.
10. Good plasticity, can be made into any shape according to the shape of the mold, easy to form and easy to process.

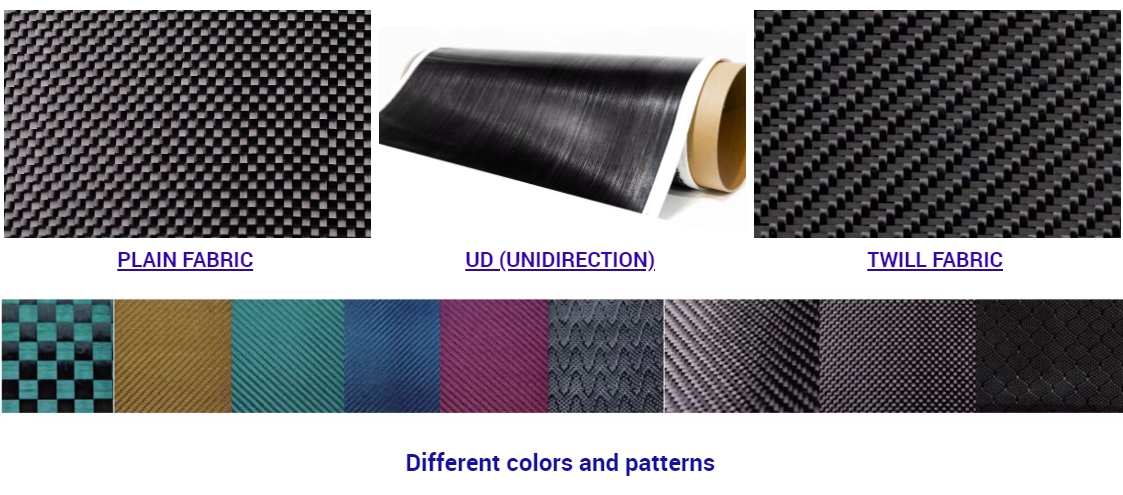

pattern


Prepreg types Fiber type Fiber weaving method Fiber model

FAW range

(g/㎡)

RC(%)
UD prepreg Carbon fiber Unidirectional T400 (Chinesne  brand) 20-200 25-50
T700
T800
T1000
T1100
M40
M60
Glass fiber High strength 100-250 25-50
Spread fabric prepreg Carbon fiber Twill/Plain T700/T800 80-200 42-50
Woven fabric prepreg Carbon fiber Twill/Plain 3K 160-400 38-48
6K
12K
