As a heat transfer medium, TG series thermal silicone grease not only has excellent thermal conductivity, good lubricity, and electrical insulation, but also has good resistance for high and low temperature, low consistency and good construction performance, which can fill the gap perfectly. This product is based on polysiloxane, supplemented by high thermal conductivity filler, non-toxic, odorless and non-corrosive, in accordance with ROHS instructions, safe and environmental protection, chemical and physical stability.
TG series silicone thermal grease has good thermal conductivity, very low contact thermal resistance, can better transfer heat, thoroughly wet the contact surface, and improve the heat dissipation effect.
| Quantity: | |
|---|---|
Product Description
Application

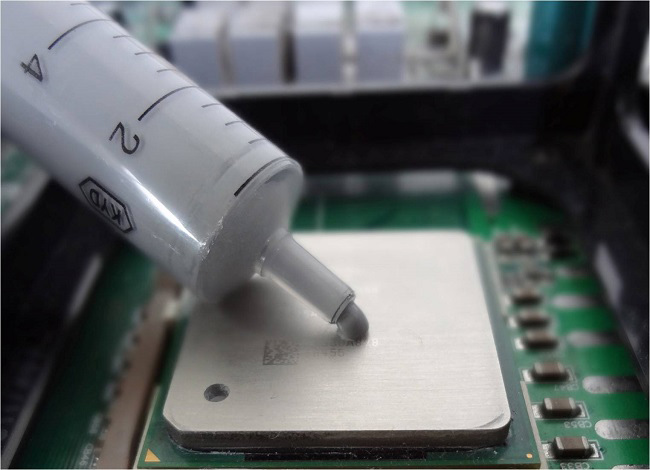

It can be filled between the electronic components and the radiator to wet the contact surface sufficiently, thus forming a very low thermal resistance surface.
Its heat dissipation efficiency is much better than other kinds of heat dissipation products.
Generally used in computer processors CPU, graphics card GPU, radiator, heat dissipation module, LED TV, power UPS, power tube, frequency converter, LED lighting, chips and chipsets and other objects that need heat dissipation or small gap sealing components.
| PROPERTIES | UNITS | HG20 | HG35 | TEST METHOD |
| Color | / | White | Gray | Visual |
| Thermal impedance @50PSI | ℃in2/W | 0.02 | 0.015 | ASTM D5470 |
| Thermal conductivity | W/mk | 2.0 | 3.5 | ASTM D5470 |
| Volume resistivity | MΩm | ≧9.0 x1013 | ≧8.0 x1013 | ASTM D257 |
| Breakdown voltage | KV/mm | ≧10 | ≧10 | ASTM D149 |
| Dielectric constant @1KHz | / | 6.5 | 5.7 | ASTM D150 |
| Specific gravity | g/cm3 | 2.4 | 2.8 | ASTM D792 |
| Viscosity@25℃ | CPS | 2.5 x105 | 5.0 x105 | ASTM D374 |
| Working Temperature | ℃ | -50~200 | -50~200 | *** |
| Shelf life@25℃ | Month | 24 | 24 | *** |
| Storage temperature | ℃ | <25 | <25 | *** |
Packing: 1kg/tank or customized. Stratification is normal phenomenon.
Mix well before use.
